Endurance Piston Pump
Long lifetime piston rod and v-packings. we use Germany UHPE + American leather v-packing so as to ensure the longest lifetime. The hardened stainless steel piston rod with very fine grinding
Small Compact Pump
Chrome over steel construction withstands jobsite abuse.
Max. Power Motor
High quality 2600W and 2800W Brushless motor which is totally enclosed to protect internal components for prolonged motor life, and one year warranty.
Durable and reliable, no carbon brush and o spark during the spraying.
Easy Out Manifold Filter
The pump filter from the inside out so it won’t collapse or get stuck when removed.
The filter comes out with the cap for less mess to help ease cleaning.

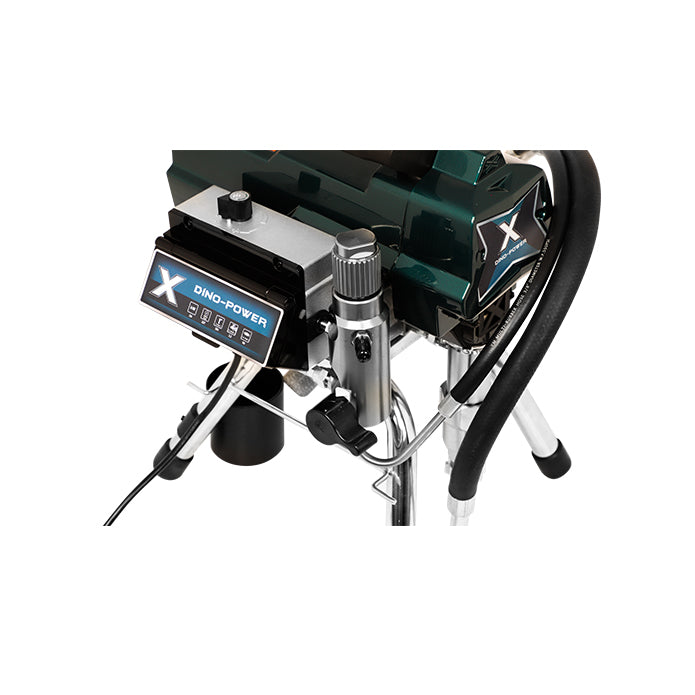

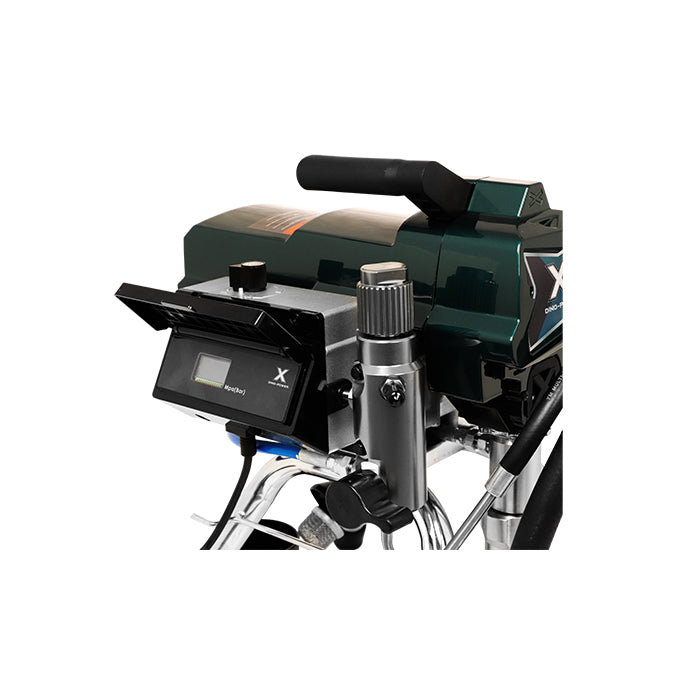

SmartControl
The digital pressure control and display for easy adjusting the pressure.
Machine equipped with X450 250bar high quality and high quality airless spray gun with 517 spray tip.
Warranty: 2-year limited warranty for main components
| Model Number | X32 X40 |
|---|---|
| Machine Power | Electric-powered |
| Motor power | 2600W 2800W |
| Motor type | Brushless motor |
| Pressure controlling | Mechanical |
| Flow rate | 3.2L/min 4.0L/min |
| Max. tip size | 0.031" 0.035" |
| Max. hose length | 90M |
| Max.pressure | 227bar/3300psi |
| Spraying pressure | 210bar/3045psi |
| Net weight | 18KGS |
| Gross weight | 22.5KGS |
| Package | Carton box |
| Measurement | 50x42x58cm |
| Container load quantity | 176sets |
| Worn parts | piston rod and v-packings |
| Warranty | ne year for main components |
| no. | product | describe |
|---|---|---|
| 1 | Pump Repair Kits | DP-X9RK |
| 2 | High quality Valves | DP-X9V |
| 3 | High Pressure hose and Connector | DP-637H05 DP-637C |
| 4 | Extension Pole |
DP-637LT15 15cm DP-637LT30 30cm DP-637LT50 50cm DP-637LT75 75cm |
| 5 | Lubricating oil | DP-637L0 |
| 6 | Filters&Strainers |
DP-637F60 60-mesh Gun Filter DP-637F100100-mesh Gun Filter* DP-637SF4040-meshinletstrainer |
| 7 | Airless Spray Tip | DP-637XT517* |
| 8 | X Tip Guard | DP-637SX* |
| 9 | Tip Gasket | DP-637G* |
